Understanding the RocketMQ-Rust Runtime Architecture

A message broker runs many kinds of work at once: network requests, periodic maintenance, storage operations, metadata writes, and shutdown cleanup. Executing a future is only one part of the problem. The application also needs to know who owns that work, when to reject more of it, and what remains after a timeout.

rocketmq-runtime builds on Tokio to connect those decisions. Its central design is explicit ownership: the application owns the runtime, components own tracked tasks, and resource permits follow the work that actually retains capacity.

This article follows the project's architecture animation through seven stages: boot, spawn, schedule, block, budget, persist, and shutdown.

The project's original architecture SVG uses a 32-second animation to explain relationships. The animation timing does not represent measured execution time.

Scope: This is a source-based walkthrough of commit 5cdc853, checked on October 10, 2026. It describes the repository snapshot, which may differ from a published crate release. No benchmarks or tests were run for this article.

AI disclosure: This article was generated by an AI assistant using the linked project documentation and source code.

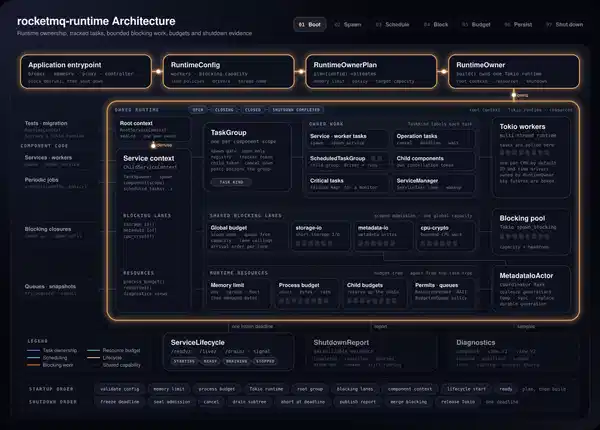

Read the diagram as two trees and shared execution capacity

Three structures organize the runtime:

• The task ownership tree determines which component admits, tracks, and shuts down work
• The resource-budget tree accounts for explicitly reserved counts and retained bytes
• The shared blocking lanes admit blocking closures through bounded capacity and maintain a separate task registry

Every component(...) call creates a child TaskGroup. A child context can create further children, and a group can own both tasks and other groups. Cloning a context shares its existing group.

TaskKind labels a task; it does not create another ownership level. An OperationContext adds cancellation and a deadline to work within an existing component group. A ScheduledTaskGroup, by contrast, owns a child group for its driver and runs.

Keep resource accounting separate from this hierarchy. Giving a task an owner does not automatically account for every allocation it makes. The architecture contracts make that boundary explicit.

1. Boot with an application-owned runtime

The recommended construction path is:

RuntimeConfig → RuntimeOwner::plan → build → RootServiceContext

Planning validates configuration without starting Tokio or discovering system resources. Building performs memory-limit discovery and constructs the runtime.

RuntimeOwner owns the execution environment and shared resources. Components receive ChildServiceContext, or a narrower capability such as TaskSpawner. RuntimeHandle is an internal implementation detail, not the public integration API.

This finite example comes from the runtime README. It registers a service and immediately exercises cooperative shutdown:

use rocketmq_runtime::{RuntimeConfig, RuntimeOwner};

fn main() -> Result<(), Box<dyn std::error::Error>> {
    let owner = RuntimeOwner::plan(RuntimeConfig::broker_default())?.build()?;
    let broker = owner.root_context().component("broker");
    let cancellation = broker.task_group().cancellation_token();

    broker.spawn_service("heartbeat", async move {
        cancellation.cancelled().await;
        // Finish any ordered asynchronous cleanup here.
    })?;

    let report = owner.shutdown_runtime_blocking()?;
    assert!(report.is_healthy(), "{}", report.to_json());
    Ok(())
}

A real entrypoint first runs startup and service logic through owner.block_on(...). It then consumes the owner outside the Tokio context to shut down the runtime. The Broker entrypoint follows this pattern and checks the resulting report.

2. Spawn with a cancellation contract

Task submission must coordinate with shutdown. Otherwise, shutdown could observe an empty registry just before another thread submits work.

The task group's spawn gate serializes registration with shutdown transitions. Metadata and a tracker token are registered under the gate; dispatch to Tokio follows outside it. If an abort arrives before the task handle is installed, that request is still honored.

Cancellation propagates from a parent group to its descendants. Cancelling one child does not cancel its parent or siblings. Dropping a context handle is insufficient for graceful shutdown because active tasks can keep the group alive.

Choose a submission method by deciding what cancellation should do:

• spawn_service: the service observes cancellation and performs its own ordered cleanup
• spawn_cancellable_service: owner cancellation drops the future, appropriate when cancellation is safe
• spawn_operation: work observes both owner cancellation and the operation's cancellation or deadline
• spawn_draining_operation: accepted work can continue after owner cancellation, while operation cancellation, its deadline, and group shutdown still bound it

For request-scoped work, use an operation under a stable component rather than creating a new component per request. Also distinguish cancel(), which broadcasts a signal, from shutdown(...), which closes admission and waits for evidence. See the task contracts.

3. Schedule with an explicit backlog policy

Periodic work becomes interesting when one run takes longer than its period. The scheduler makes the response explicit:

Configuration selects the timing model, and the execution policy must agree. When all fixed-rate run slots are occupied, Skip discards the tick, CoalesceLatest retains one pending run, and BoundedCatchUp(n) retains a bounded backlog.

For example, a refresh that only needs the latest state may tolerate coalescing. Maintenance that should rest between executions is a better candidate for fixed delay. These are application decisions: a scheduler cannot decide whether skipped work is acceptable.

Drivers and runs remain tracked under the scheduler's group. max_run_time can drop a run's future, but the application must still reason about external side effects already triggered. The scheduling documentation also describes drift and run metrics.

4. Keep blocking capacity until the closure exits

Components access managed lanes through storage_io(), metadata_io(), and cpu_crypto(). The lanes share one global admission budget per owner, with additional lane-specific concurrency and queue bounds. Cloning an executor does not create another pool.

Two timeout settings cover different phases:

• queue_timeout bounds the wait for execution capacity
• task_timeout bounds the caller's wait after admission

Neither can stop an already-running blocking closure.

Consider a filesystem operation that stalls. Its caller times out, but the underlying closure continues. Releasing the permit at that point would admit another operation while the first still consumes capacity. Repeated timeouts could make actual concurrency exceed the configured limit.

The executor implementation therefore lets the real closure retain its permit and task record until exit. An abandoned running submission can appear as TimedOutStillRunning.

Long-lived blocking loops need their own owner and stop/join protocol. The managed lanes reject BlockingKind::LongRunning.

5. Account for the full lifetime of retained data

RuntimeResources provides the shared process budget. Component budgets enforce limits along their ancestor chain; reservations use atomic reserve-and-rollback so a failed ancestor check does not leave partial reservations behind.

ResourcePermit holds a reservation through RAII. A configured control reserve can keep data work from consuming capacity intended for control work.

The subtle part is dequeue behavior:

• recv() and try_pop() release the permit when the item leaves the queue
• recv_budgeted() and try_pop_budgeted() return a BudgetedItem that retains the permit during processing

Suppose a large payload leaves a queue and spends another second being processed. If the budget is intended to cover queued and in-flight data, releasing its permit at dequeue understates retained work. The budgeted variants let the reservation follow that lifetime.

These are explicit accounting limits, not an automatic ceiling on process RSS. Untracked allocations, caller-retained copies, and runtime overhead remain outside the ledger. Memory-limit discovery helps configure budgets; deployment sizing still needs measurement and headroom. The budget and queue contracts explain the transfer rules.

6. Separate metadata acceptance from durability

MetadataIoActor accepts immutable snapshots and coordinates their generations. It uses the owner's shared metadata lane for actual writes, with bounded pending operations and bytes.

An Accepted submission provides a receipt. It does not establish durability. The caller must wait for that receipt's persistence result, or use a durable submission API and inspect the outcome.

Queued generations for one logical resource can coalesce. A later durable generation can satisfy an earlier waiter. This suits complete snapshots where newer state includes earlier changes; it is unsuitable as a substitute for preserving every append-only log record.

By default, the actor writes one resource at a time. with_max_concurrent_writes(n) permits bounded concurrency between independent resources, still limited by the metadata lane. Generations of one resource remain serialized.

The filesystem implementation writes a temporary file, synchronizes it, replaces the target, and synchronizes the parent directory on supported platforms before advancing durable generation.

The closure retains its snapshot and budget permit through real completion, even if its observer times out. Consequently, a timeout does not prove rollback or justify treating the write as never having happened. Unknown outcomes require reconciliation. Target coordination is process-local and does not provide a cross-process lock or generic crash-recovery guarantee. See the persistence contract.

7. Shut down against one deadline and inspect the evidence

ServiceLifecycle separates readiness, liveness, and shutdown coordination. Its first shutdown request freezes an absolute ShutdownDeadline; subsequent requests cannot extend it.

Passing that deadline through components and the owner prevents a common mistake: granting each shutdown layer a fresh timeout and accidentally multiplying the total exit budget. The Broker passes the lifecycle deadline to shutdown_runtime_blocking_until(...).

A task group closes admission, broadcasts cancellation, and starts child shutdowns concurrently with waiting for its own tasks. Remaining tracked tasks are aborted at the deadline. The owner additionally accounts for blocking work.

The reports distinguish several kinds of evidence:

1. Task completion: the registered future was destroyed; this alone does not prove business success
2. Abort confirmation: requesting abort and confirming destruction are different observations
3. Blocking completion: a closure may still run after its caller stops waiting
4. Durable metadata completion: the receipt establishes the persistence result independently of task exit

ShutdownReport::is_healthy() requires zero leaked, failed, panicked, timed-out, and still-running-blocking counts, plus healthy children. An aborted count alone does not make the report unhealthy.

Use absolute-deadline APIs when composing a shared budget. Some relative operation waits allow up to one extra second to confirm aborted futures were destroyed. Even absolute deadlines are not hard real-time guarantees: runtime starvation or blocking destructors can delay timer polling.

Explicitly stop admission and drain final I/O in the application's required order. Drop and immediate shutdown are fallback paths, and their reports cannot establish that all asynchronous cleanup finished. These details are documented in the shutdown contracts.

A practical integration checklist

When reviewing a component, follow the same path as the animation:

• Does it receive an application-owned context?
• Is dropping each cancellable future safe?
• What happens when periodic work falls behind?
• Does blocking capacity remain held after observer timeout?
• Does accounting cover payloads after dequeue?
• Does the caller distinguish metadata acceptance from durability?
• Does cleanup share one deadline and inspect incomplete-work reports?

For operational visibility, V2 diagnostics label sections as local, subtree, or process_shared. A missing input produces an absent section rather than an apparently empty one. Detail-scan budgets do not bound full aggregate collection, and snapshots are not globally atomic across groups. Prefer sanitized views for authenticated operational endpoints. Diagnostics documentation

The recurring question is what “finished” means at each boundary. A caller returning, a future being destroyed, a closure exiting, and a generation becoming durable provide different evidence. RocketMQ-Rust's runtime makes those distinctions explicit so component code can choose the right contract.

Further reading: project repository, runtime README, and architecture invariants.
